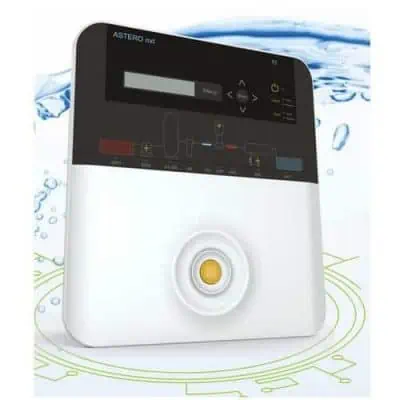

Automatic RO Control Panel – Astero 13 NXT with Bluetooth
₹ 7300
Description
Astero Ro Control Panel NXT:
Compact Micro-processor based Plug & Play control panels with plant operation programmed and all safeties inbuilt. These panels along with the required level, pressure, conductivity and flow sensors help in making the entire plant completely automatic.
Features
- Complete RO logic preprogrammed
- Mimic diagram with 6 LEDs for I/O indication
- 16 X 2 Alphanumeric LCD display with keypad for programming
- Notification for filter backwash and plant service due based on real time operation
- Complete RO logic preprogrammed
- Time settable lock
- Automatically flushes the membrane during Starting, Stopping & after a set interval
- Avoids unnecessary chattering of HPP due to initial dipping in suction pressure
- Takes care of required motor protection such as overload, single phasing, dry running
- Auto/manual facility(even in MANUAL mode motor protection doesn′t get bypassed)
- In built Flow rate indicator with Totaliser
- In built operation hour counter
- In built Conductivity/TDS indicator with tripping facility @high conductivity/TDS
- Also equipped to suit Auto multiport valve in pretreatment
- Password protected settings
- Bluetooth Control
Android App Available for Bluetooth Control:
Specifications
| Input Voltage: | 230 VAC |
| Output for RWP | Single Phase -1.5 KW |
| Output for HPP | Three Phase – 4 KW |
DESCRIPTION
Astero Ro Control Panel NXT:
Compact Micro-processor based Plug & Play control panels with plant operation programmed and all safeties inbuilt. These panels along with the required level, pressure, conductivity and flow sensors help in making the entire plant completely automatic.
Features
- Complete RO logic preprogrammed
- Mimic diagram with 6 LEDs for I/O indication
- 16 X 2 Alphanumeric LCD display with keypad for programming
- Notification for filter backwash and plant service due based on real time operation
- Complete RO logic preprogrammed
- Time settable lock
- Automatically flushes the membrane during Starting, Stopping & after a set interval
- Avoids unnecessary chattering of HPP due to initial dipping in suction pressure
- Takes care of required motor protection such as overload, single phasing, dry running
- Auto/manual facility(even in MANUAL mode motor protection doesn′t get bypassed)
- In built Flow rate indicator with Totaliser
- In built operation hour counter
- In built Conductivity/TDS indicator with tripping facility @high conductivity/TDS
- Also equipped to suit Auto multiport valve in pretreatment
- Password protected settings
- Bluetooth Control
Android App Available for Bluetooth Control:
Specifications
| Input Voltage: | 230 VAC |
| Output for RWP | Single Phase -1.5 KW |
| Output for HPP | Three Phase – 4 KW |
