Automatic RO Control Panel – Astero 11 NXT RM with GSM (EMBARK)
₹ 12490
Description

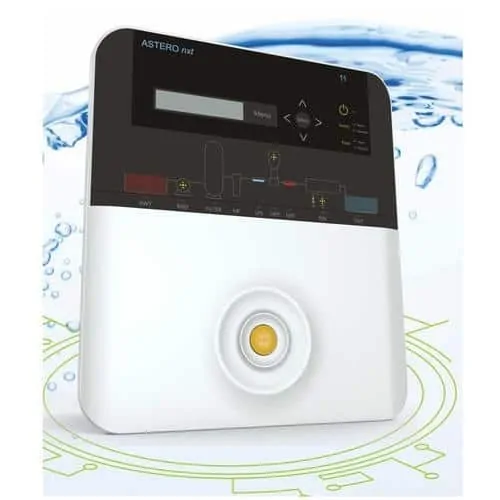

Astero™ NXT is a flexible and programmable controller for automation of all water treatment systems. Driven by innovation, Astero™ NXT has an intuitive & user-friendly, patented interface for easy understanding and quick access for critical settings. The Astero™ NXT has Bluetooth® connectivity inbuilt (Optional), and it can pair with your Android mobile devices for easier data monitoring and control, making it possible to transfer and save data. The Astero™ NXT has a Smart Alphanumeric screen and it uses the different colors of the back-lit display to show plant status to ease up the monitoring process. This device has an in-built RS485 communication port for remote data monitoring and is made from strong, rigid materials for durability.
Compact Micro-processor based Plug & Play control panels with plant operation programmed and all safeties inbuilt. These panels along with the required level, pressure, conductivity and flow sensors help in making the entire plant completely automatic.
Features
- Intuitive Patented Interface
- 13 Keys Makes Settings Much Simpler
- Quick Access to Critical Settings
- Logical START/STOP with Single Key
- Different Colored Backlit to Show Plant Status

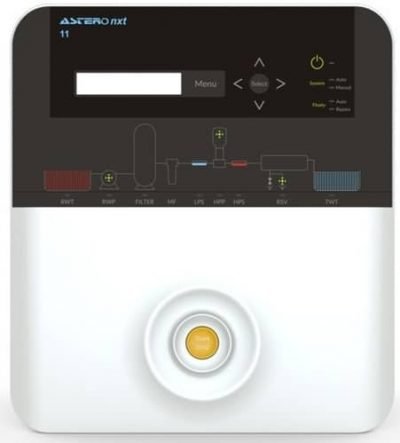

- Single Line Mimic Diagram with 13 LED’s for I/O Indication
- 16X2 Alphanumeric Display with Color Changing Features
- Same Cutout Size OF ASTERO NG with NUT and STUD
- Notification for Filter Backwash and Plant Service Due
- Time Lock Facility
- FUSE Failure Indication
- Larger Power Terminals (6 Sq. mm) for Easy Wiring
- Removable Terminals for Input
- Automatically Flushes the Membrane during Starting, Stopping & after a Set Interval
- Takes Care of required Motor Protection such as Overload, Single Phasing, Dry Running
- Auto/ Manual Facility (even in MANUAL Mode Motor Protection doesn’t get bypassed)
- Equipped to Suit Auto-Multiport Valve in Pretreatment
- Inbuilt Protection Against Over and Under Voltage

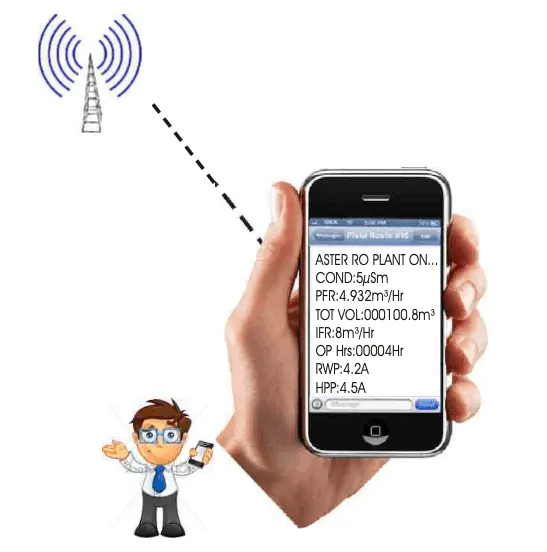

Control Panel comes with in built modem to transfer data through SMS.The modem is configured to suit SIM card of any Telecom Service Provider.It will send plant status and trip alerts to maximum 3 mobile numbers.The SMS frequency and mobile numbers are user settable.This modem will send plant status with following parameters.
PARAMETERS
Panel will send below parameter in plant status message.
• Conductivity/TDS
• RO Permeate Volume
• RO Operation Hour
• High Pressure Pump Current
FAULTS/ALERTS
• RO Permeate Flow Rate • RO Inlet Flow Rate
• Feed Pump Current
• Plant Status
Panel will trip the plant if below faults occur and send alert message to user
• Conductivity/TDS high
• Low Pressure trip
• Treated Water Tank full
• RWP dry running,Single phasing,Overload
• Voltage(under or over) trip • High Pressure
• Dosing tank Level low
• HPP dry running,Single phasing,Overload
User gets real time information about plant status & parameter with site name in above format frequently. This frequency is settable by user through SMS
Specifications
| Input Voltage: | 230 VAC |
| Output for RWP | Single Phase -( 1.5 KW ) |
| Output for HPP | Single Phase – ( 2 KW ) |
DESCRIPTION
Astero™ NXT is a flexible and programmable controller for automation of all water treatment systems. Driven by innovation, Astero™ NXT has an intuitive & user-friendly, patented interface for easy understanding and quick access for critical settings. The Astero™ NXT has Bluetooth® connectivity inbuilt (Optional), and it can pair with your Android mobile devices for easier data monitoring and control, making it possible to transfer and save data. The Astero™ NXT has a Smart Alphanumeric screen and it uses the different colors of the back-lit display to show plant status to ease up the monitoring process. This device has an in-built RS485 communication port for remote data monitoring and is made from strong, rigid materials for durability.
Compact Micro-processor based Plug & Play control panels with plant operation programmed and all safeties inbuilt. These panels along with the required level, pressure, conductivity and flow sensors help in making the entire plant completely automatic.
Features
- Intuitive Patented Interface
- 13 Keys Makes Settings Much Simpler
- Quick Access to Critical Settings
- Logical START/STOP with Single Key
- Different Colored Backlit to Show Plant Status
- Single Line Mimic Diagram with 13 LED’s for I/O Indication
- 16X2 Alphanumeric Display with Color Changing Features
- Same Cutout Size OF ASTERO NG with NUT and STUD
- Notification for Filter Backwash and Plant Service Due
- Time Lock Facility
- FUSE Failure Indication
- Larger Power Terminals (6 Sq. mm) for Easy Wiring
- Removable Terminals for Input
- Automatically Flushes the Membrane during Starting, Stopping & after a Set Interval
- Takes Care of required Motor Protection such as Overload, Single Phasing, Dry Running
- Auto/ Manual Facility (even in MANUAL Mode Motor Protection doesn’t get bypassed)
- Equipped to Suit Auto-Multiport Valve in Pretreatment
- Inbuilt Protection Against Over and Under Voltage
Control Panel comes with in built modem to transfer data through SMS.The modem is configured to suit SIM card of any Telecom Service Provider.It will send plant status and trip alerts to maximum 3 mobile numbers.The SMS frequency and mobile numbers are user settable.This modem will send plant status with following parameters.
PARAMETERS
Panel will send below parameter in plant status message.
• Conductivity/TDS
• RO Permeate Volume
• RO Operation Hour
• High Pressure Pump Current
FAULTS/ALERTS
• RO Permeate Flow Rate • RO Inlet Flow Rate
• Feed Pump Current
• Plant Status
Panel will trip the plant if below faults occur and send alert message to user
• Conductivity/TDS high
• Low Pressure trip
• Treated Water Tank full
• RWP dry running,Single phasing,Overload
• Voltage(under or over) trip • High Pressure
• Dosing tank Level low
• HPP dry running,Single phasing,Overload
User gets real time information about plant status & parameter with site name in above format frequently. This frequency is settable by user through SMS
Specifications
| Input Voltage: | 230 VAC |
| Output for RWP | Single Phase -( 1.5 KW ) |
| Output for HPP | Single Phase – ( 2 KW ) |
